Gigamedia Ceiling Box: an ingenious connectivity solution for modern buildings

Ceiling Box

As technology converges towards IP based solutions, the future-proofing of data infrastructure is becoming a critical part of modern “smart”
buildings.

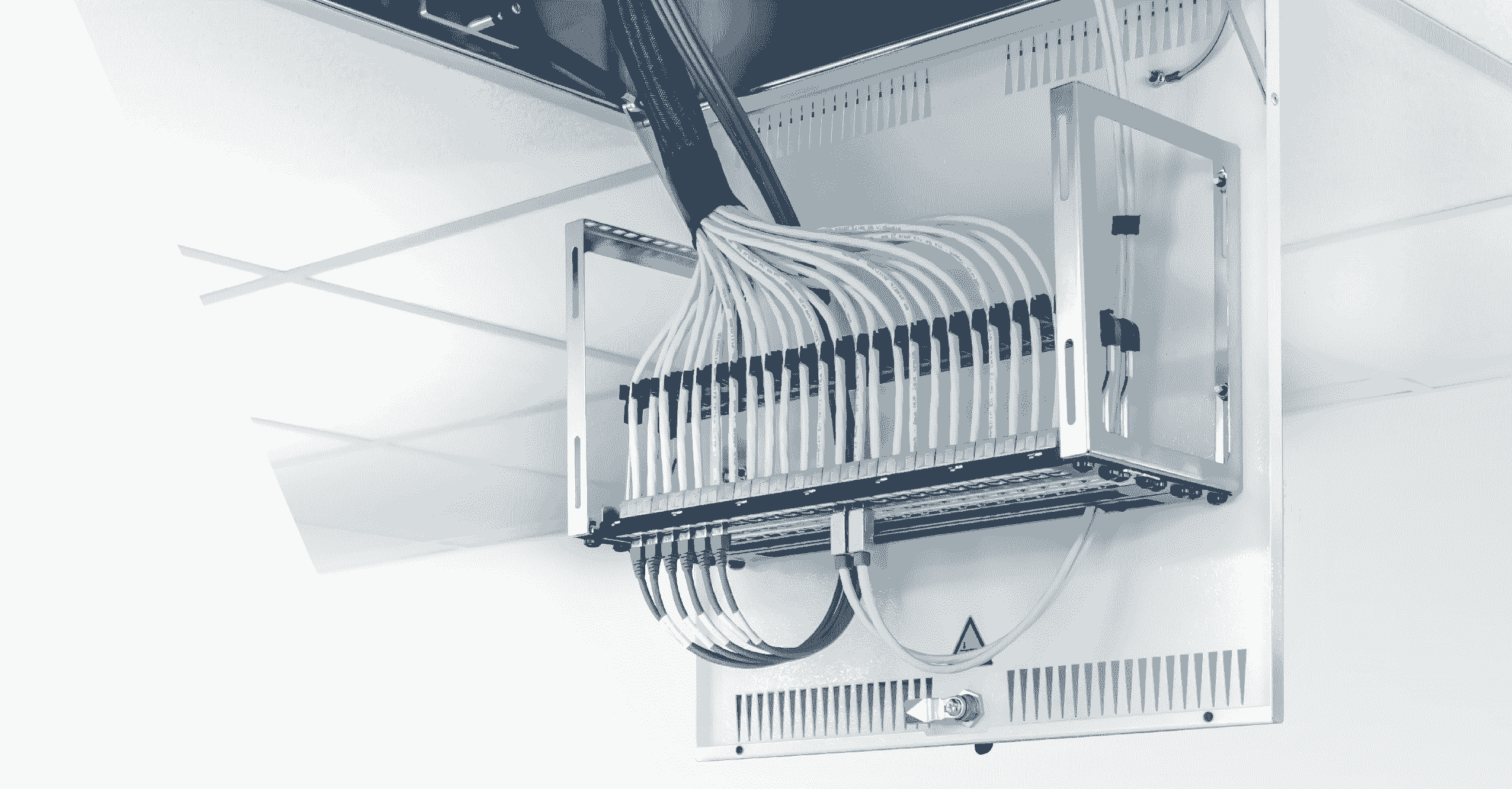

The Ceiling Box from Gigamedia is an ingenious 19″ cabinet that fits seamlessly into contemporary suspended ceilings, hiding away unsightly and potentially hazardous cabling and networking connections, and yet allowing easy access for rewiring, upgrade and maintenance work.

Product Features

  • Mechanically welded galvanized steel frame
  • 2 x 19’’ 4U (galvanized steel) mounting profiles adjustable in
    depth
  • Steel door (RAL 9010) with ventilation holes, 90 ° opening,
    with key lock
  • Gas cylinders for secure opening
  • 4 cable entries located on the sides (cable management and shutter included)
  • External dimensions: 595 x 595 x 315 mm
  • Inner depth: 300 m
  • Load capacity: 20 kg / 44 Lbs
  • Installation: in place of a suspended ceiling tile, suspended from the building’s structure (4 attachment points provided)
  • Earthing kit included

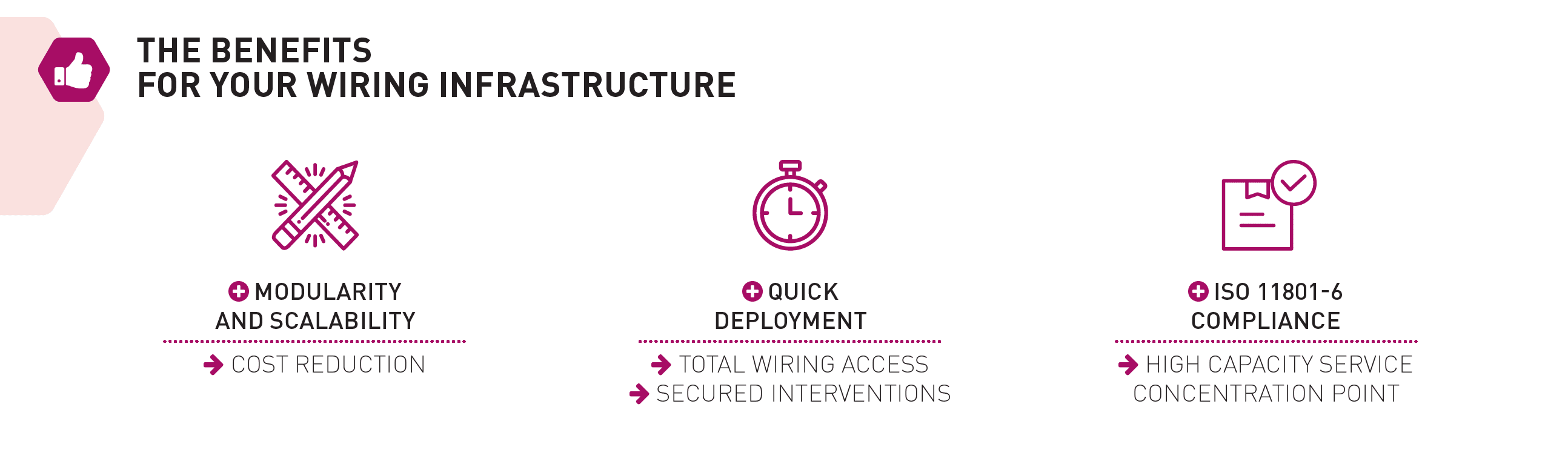

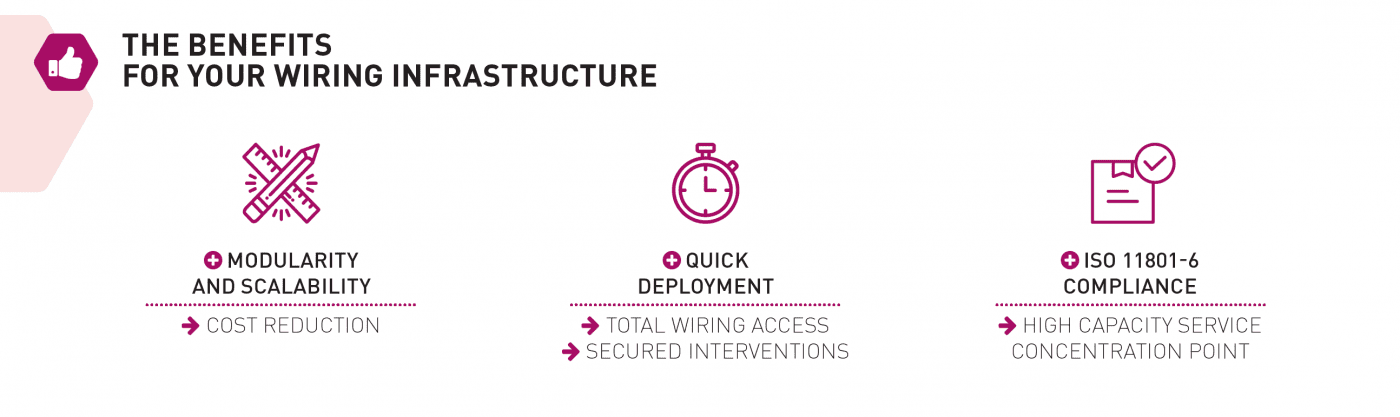

Benifits for Wiring Infrastructure

For more information View this PDF, or ask at your local Kellihers/CT Electric branch.
